145690080020829+ 4.Discontinued

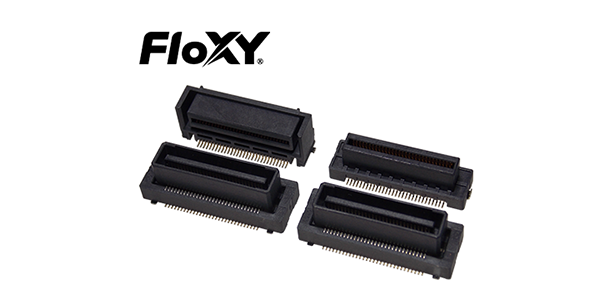

The 5690 Series are Board to Board Connectors featuring a pitch of 0.635mm. Plug connectors are of the vertical (stacking) type, and receptacle connectors are offered in two types depending on the combination with plug connectors: vertical (stacking) type for connecting boards which are aligned in parallel directions, and right angle type for connecting boards in vertical directions. The floating structure of the plug connector has a movable range of ±0.5mm in the X and Y directions, thus improving contact reliability against misalignments in mating or vibrations. Furthermore, Kyocera’s proprietary contact structure removes foreign matter with concentrated load (wiping effect), thus realizing high contact reliability. These products can withstand high temperatures up to 125°C and are ideal for automotive equipment such as car navigation systems and millimeter-wave radars.

Send by Email

Distributor Inventory

Distributor	Part Number	Uploaded	Country / Region	Quantity	Buy

Distributor	Part Number	Uploaded	Country / Region	Quantity
Distributor	Buy

Please check the website of each agency for the latest information.

Specifications

Pitch	0.635mm
Connection Style	Parallel Connection Vertical Connection
No. of Positions	80
Floating	XY±0.5mm
Operating Temperature Range	-40℃ ~ 125℃
Rated Current(signal)	DC 0.5A/Contact
Rated Voltage	DC 50V/Contact
Withstanding Voltage	AC 500Vrms、1min.
Shape	Plug
Metal Tab	With
Boss	Without
Vacuum item	Without
Packaging style	Reel
Quantity per Package	350
Packing Specification	30503969.pdf (170.17KB)

Packaging Specifications

Packaging style	Reel
Quantity per Package	350
Packing Specification	30503969.pdf (170.17KB)

Engineering Documents

Environmental data

RoHS Compliance	Yes

RoHS_5690.pdf (412.96KB)

REACH_5690.pdf (41.68KB)

TSCA_5690.pdf (74.38KB)
