045138008100858+ 2.Production

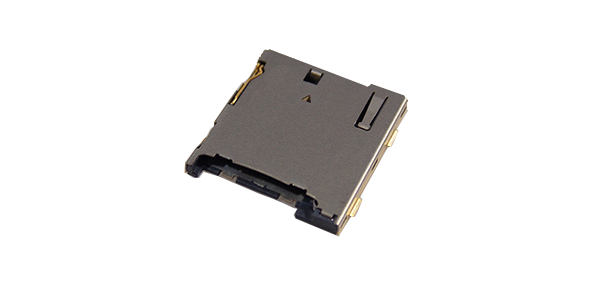

The 5138 Series are connectors for cards, featuring a height of 1.6mm that are compliant with microSDTM standards specified by the SD Card Association, which is an organization in charge of setting industry standards for SD Memory Cards.
Stock Check
Application
- Smartphone/Tablet PC
- Audio equipment
- Gaming Equipment
- Industrial Equipment
Specifications
| Applicable Standard | microSDTM |
|---|---|
| PCB Mounting Method | SMT |
| No. of Positions | 8 |
| Operating Temperature Range |
-25℃ ~ 85℃
|
| Durability (mating cycles max.) | 10000 |
| Rated Current(signal) | DC 0.5A/Contact |
| Rated Voltage | DC 5V/Contact |
| Withstanding Voltage | AC 500Vrms、1min. |
| Packaging style | Reel |
| Quantity per Package | 1000 |
| Packing Specification |
 30503882.pdf (135.01KB)
|
Packaging Specifications
| Packaging style | Reel |
|---|---|
| Quantity per Package | 1000 |
| Packing Specification |
30503882.pdf (135.01KB)
|
Engineering Documents
Catalog
5138.pdf (195.42KB)
2D Drawing
BJS5138025.pdf (316.13KB)
IGES_005138008100.zip (216.88KB)
Product Specification
20103881.pdf (525.96KB)
Evaluation Test Report
Test Report SearchEnvironmental data
| RoHS Compliance | Yes |
|---|
