145631176112829+T 1.In Planning

Brand: KYOCERA
SKU: 145631176112829+T

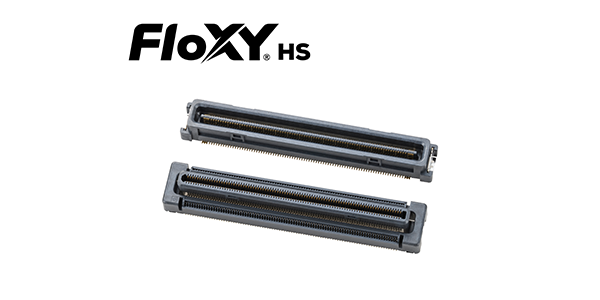

The 5631 series is a board-to-board connector with a floating mechanism that combines high-speed transmission and high reliability. While achieving high-speed transmission of 16 Gbps, it achieves ±0.5 mm of movement in the X and Y directions, significantly improving the mechanical and electrical characteristics of high-speed transmission, which is generally considered difficult with a floating mechanism.

Suitable for automobile (infotainment, driving/safety equipment etc.)

Send by Email

Distributor Inventory

Distributor	Part Number	Uploaded	Country / Region	Quantity	Buy

Distributor	Part Number	Uploaded	Country / Region	Quantity
Distributor	Buy

Please check the website of each agency for the latest information.

Features

<Supported high-speed transmission standards>
PCIe Gen.1 2.5GT/s to Gen.4 16GT/s, USB3.2 Gen.1/Gen.2, SATA3.0 etc.
Space-saving design with stacking height of 10 to 14 mm and width of 9.9 mm.
It is a composite type that can be used without mounting a signal connector and a power supply connector separately to meet a wide range of needs.

Application

Automobile (Driving/Safety Equipment)
Automobile（Infotainment）
Industrial Equipment
Datacenter, AI Server
Robot

Specifications

Pitch	0.500mm
Connection Style	Parallel Connection
Stacking Height	11.00mm
Width	9.90mm
Length	52.72mm
No. of Positions	164
Floating	XY±0.5mm
Operating Temperature Range	-40℃ to 125℃
High-speed transmission standard	PCIe Gen.1~Gen.4 SATA3.0 USB3.2 Gen.1/Gen.2
Rated Current(signal)	DC 0.5A/Contact
Rated Current(power)	DC 3.0A/Contact
Rated Voltage	DC 50V/Contact
Withstanding Voltage	AC 500Vrms、1min.
Shape	Plug
Metal Tab	With
Boss	Without
Vacuum item	Cap
Packaging style	Reel
Quantity per Package	600
Packing Specification	305035631001.pdf (130.55KB)

Remarks

The current value may be limited by temperature rise.

Packaging Specifications

Packaging style	Reel
Quantity per Package	600
Packing Specification	305035631001.pdf (130.55KB)

Engineering Documents

Environmental data

RoHS Compliance	Yes

RoHS_5631.pdf (111.91KB)

REACH_5631.pdf (107.94KB)

TSCA_5631.pdf (143.32KB)
