KV7050G*******P3GD00 3.NRND

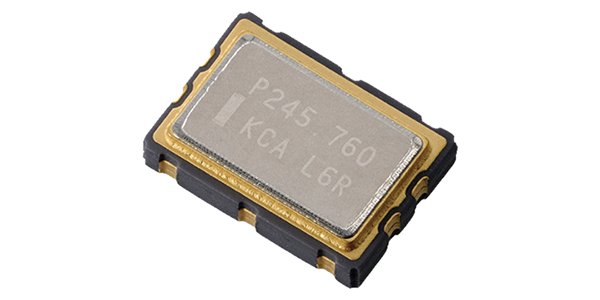

7050 Size VCXO
Stock Check
Design Tools
Crystal Units vs. IC Matching SearchSpecifications
| Dimensions (L×W) | 7.0×5.0mm |
|---|---|
| Height (max.) |
1.60 |
| Frequency [MHz] | 10.000~800.000MHz |
| Operating Temperature Range |
-40℃ ~ 85℃
|
| Frequency Tolerance (x10 -6) | ±50 |
| Output Type | LV-PECL |
| Supply Voltage (V) |
3.3V |
| Packaging Style | Reel |
| Quantity per Package | 1000 |
| Weight | 173.11mg |
Packaging Specifications
| Packaging Style | Reel |
|---|---|
| Quantity per Package | 1000 |
| Weight | 173.11mg |
Environmental data
| RoHS Compliance | Yes |
|---|
Related Glossary
View AllAbbreviation of parts per million. Used as 10-6 when referring to the crystal frequency tolerance.
A Voltage Controlled Crystal Oscillator, which features a variable capacitance component such as a diode inserted into a SPXO oscillation loop, enables control of the oscillation frequency by varying the voltage of the external power supply.
Related Products VCXO
Simple Packaged Crystal Oscillators consist of crystal units and an oscillation circuit.
Related Products SPXO
Max. frequency deviation from the nominal frequency. Specified in 10-6.
Frequency variation caused by temperature changes referenced to the frequency at 25 deg.C.
