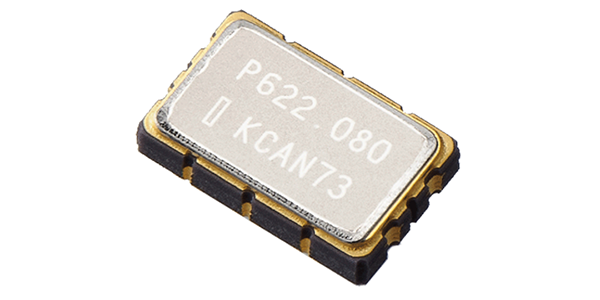

KV5032R*******P2GD00 3.NRND
Distributor Inventory
Stock Check
Design Tools
Crystal Units vs. IC Matching SearchSpecifications
| Dimensions (L×W) | 5.0×3.2mm |
|---|---|
| Height (max.) |
1.20 |
| Frequency (MHz) | 10.000~800.000MHz |
| Operating Temperature Range |
-40℃ ~ 85℃
|
| Frequency Tolerance (x10 -6) | ±50 |
| Output Type | LV-PECL |
| Supply Voltage (V) |
2.5V |
| INH Function | Yes |
| Packaging Style | Reel |
| Quantity per Package | 1000 |
| Weight | 54.81mg |
Packaging Specifications
| Packaging Style | Reel |
|---|---|
| Quantity per Package | 1000 |
| Weight | 54.81mg |
Environmental data
| RoHS Compliance | Yes |
|---|
Related Glossary
View AllA Voltage Controlled Crystal Oscillator, which features a variable capacitance component such as a diode inserted into a SPXO oscillation loop, enables control of the oscillation frequency by varying the voltage of the external power supply.
Related Products VCXO
Abbreviation of parts per million. Used as 10-6 when referring to the crystal frequency tolerance.
Max. frequency deviation from the nominal frequency. Specified in 10-6.
Frequency variation caused by temperature changes referenced to the frequency at 25 deg.C.
