145908030000829+ 1.In Planning

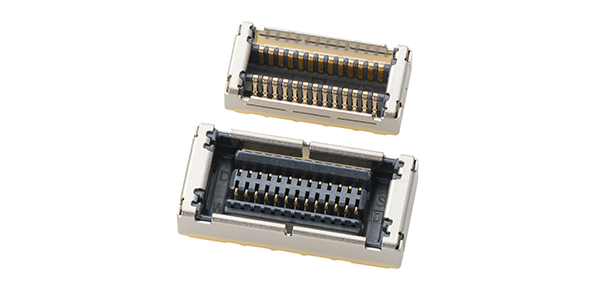

The 5908 series is a 0.4mm pitch board to board connector with a fully shielded structure that achieves excellent EMI characteristics. It supports transmission standards such as PCI Express Gen.3 (8Gbps) and USB 3.2 Gen.2 (10Gbps), meeting the high-speed transmission needs that come with increasingly sophisticated and multi-functional devices.
Recommended applications: Small electronics and IoT products such as wearable devices, and audio devices / Automotive cameras and other in-vehicle devices.

Send by Email
Distributor Inventory

Features

  • Excellent EMI characteristics for high-speed transmission
  • High durability and good workability

Application

  • Communications Module
  • Wearable Device
  • Audio equipment
  • Automobile (Driving/Safety Equipment)

Specifications

Pitch 0.400mm
Connection Style Parallel Connection
Stacking Height 2.00mm
Width 4.20mm
Length 7.82mm
No. of Positions 30
Operating Temperature Range -40℃ ~ 125℃
High-speed transmission standard PCI Express Gen.3
USB 3.2 Gen.2
Rated Current(signal) DC 0.5A/Contact
Rated Voltage DC 30V/Contact
Withstanding Voltage AC 250Vrms、1min.
Shape Plug
Metal Tab With (Shield type)
Boss Without
Vacuum item Without
Packaging style Reel
Quantity per Package 4000
Packing Specification 305035908001.pdf (136.81KB)

Packaging Specifications

Packaging style Reel
Quantity per Package 4000
Packing Specification 305035908001.pdf (136.81KB)
