New Compact SAW Filter for Wi-Fi/Bluetooth®/wBMS

As communication devices become increasingly multifunctional, the trend toward high-density electronic component mounting and space-saving designs has become pronounced, driving demand for smaller electronic components. It is important to note that leading short-range wireless communication standards, such as Wi-Fi and Bluetooth®, are primarily used in applications where space constraints are critical. These applications include smartphones and wearable devices.
In addition, high-performance Wi-Fi routers necessitate miniaturized components, which can be achieved by increasing the number of MIMO antennas. In light of this trend, there has been increasing demand for ultra-compact SAW filters. To meet this demand, Kyocera has developed a new product.

Bluetooth® is a registered trademark of Bluetooth SIG, Inc.

Features and Applications

Features

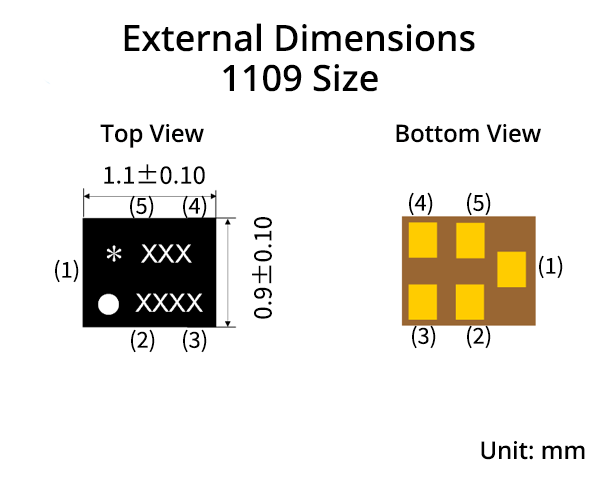

Compact 1.1x0.9mm and 1.4x1.1mm devices
Industry standard sizes and pinouts
Lineup of two types of electrical properties: standard specifications and 4G/5G compatible specifications
Lineup of consumer and automotive specifications (AEC-Q200 compatible)

Applications

Smartphones, wearable devices, tablet PCs, bicycles, wBMS, TCU, IVI, TPMS, etc.

Product Lineup

Part Number	Size	AEC-Q200	Type	Features	Production Status	Spec Sheet
SF14-2446M5UUP3	1.4 x 1.1mm		Standard	ch1-13(14)	In Mass Production	(PDF/409KB)
SF11-2442M5UUB1	1.1 x 0.9mm		Standard	ch1-13	In Mass Production	(PDF/879KB)
VF14-2442M5UUB1	1.4 x 1.1mm	Supported	Standard	ch1-13	In Mass Production	(PDF/879KB)
SF11-2442M5UUA1	1.1 x 0.9mm		High Attenuation	ch1-13 co-ext. B7/40/41	In Mass Production	(PDF/879KB)
VF11-2442M5UUA1	1.1 x 0.9mm	Supported	High Attenuation	ch1-13 co-ext. B7/40/41	In Mass Production	(PDF/852KB)
SF11-2441M5UUC1	1.1 x 0.9mm		High Attenuation	Bluetooth^® LE	In Mass Production	(PDF/1155KB)
