1.5GHz SAW Filter for GNSS

Kyocera is pleased to introduce our 1.5GHz SAW filters, which combine compact design with high performance to strongly support the evolution of cutting-edge communication and positioning devices.
You can select the filter best suited for your application, whether it be car navigation systems, smartphones, satellite communication equipment, or specialized wireless terminals.

Product Lineup

Part number	Size (mm)	Band	Type	Insertion loss	Attenuation	Production Status	Spec Sheet
SF11-1582M5UUE1	1.1 x 0.9 x 0.55	GPS L1+GAL E1 BDS B1 B1-2+GLO G1	Unbalance	1.4dB typ (1559.05-1563.15MHz) 1.1dB typ (1574.39-1576.45MHz) 1.4dB typ (1597.55-1605.89MHz)	55dB typ (703-798MHz) 65dB typ (1427-1463MHz) 45dB typ (5150-5950MHz)	In Mass Production	PDF/899KB
SF11-1582M5UUD1	1.1 x 0.9 x 0.65	GPS L1+GAL E1 BDS B1 B1-2+GLO G1	Unbalance	0.9dB typ (1559.05-1563.15MHz) 0.9dB typ (1574.39-1576.45MHz) 4.7dB typ (1597.55-1605.89MHz)	21dB typ (1610-1612MHz) 52dB typ (1615-1620MHz) 52dB typ (1626.5-1660.5MHz)	In Mass Production	PDF/622KB

Product Features: SF11-1582M5UUE1

This is a standard SAW filter optimized for the GNSS-L1 band (around 1.57542GHz). Despite its ultra-compact size of just 1.1 x 0.9mm, it delivers excellent performance with low loss and high attenuation. It supports high-precision positioning for a wide range of applications, including car navigation systems, smartphones, and positioning devices.

Features

Low insertion loss characteristics
High attenuation characteristics
Compact size of 1.1 x 0.9mm

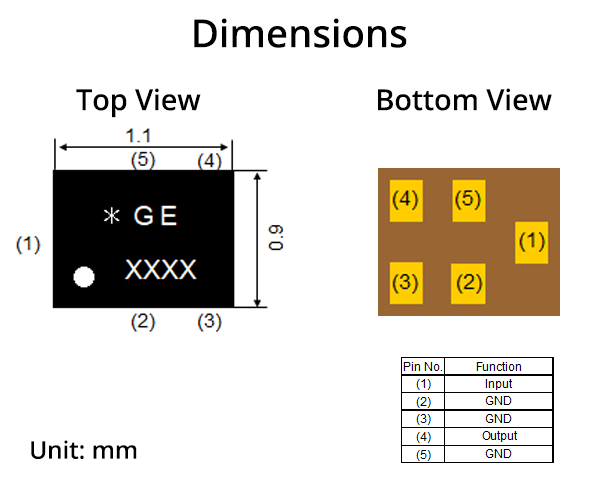

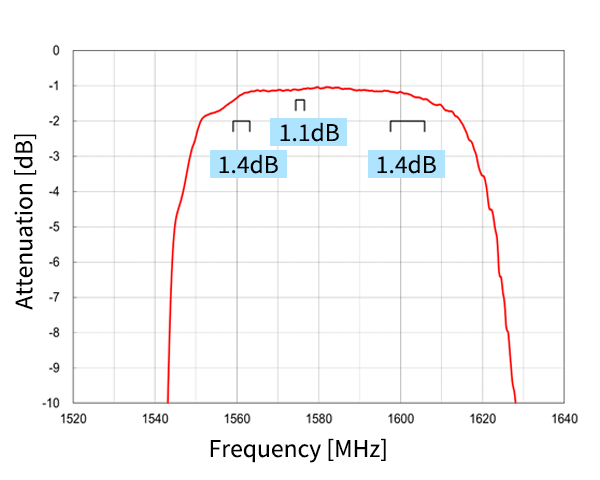

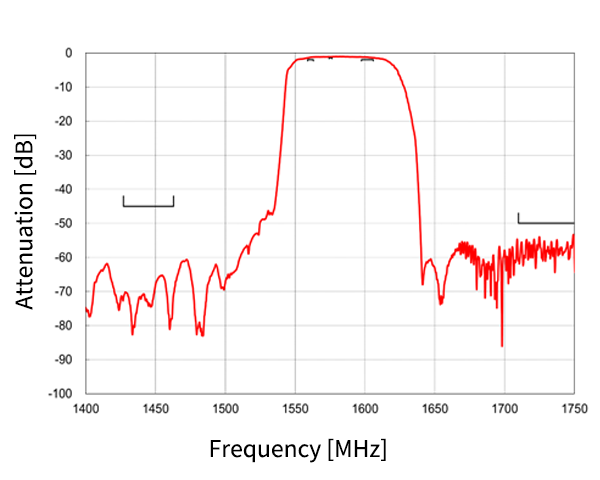

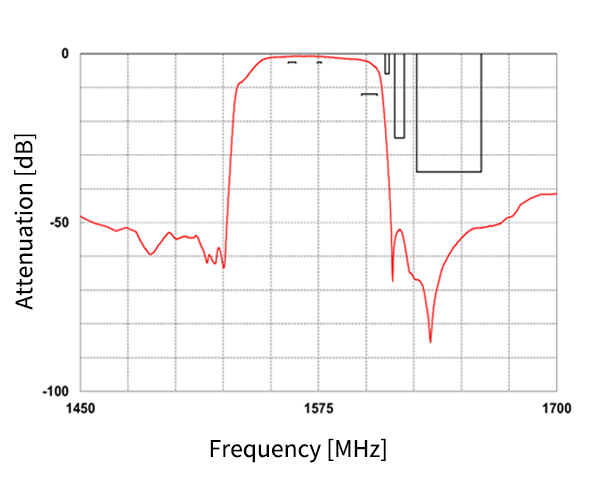

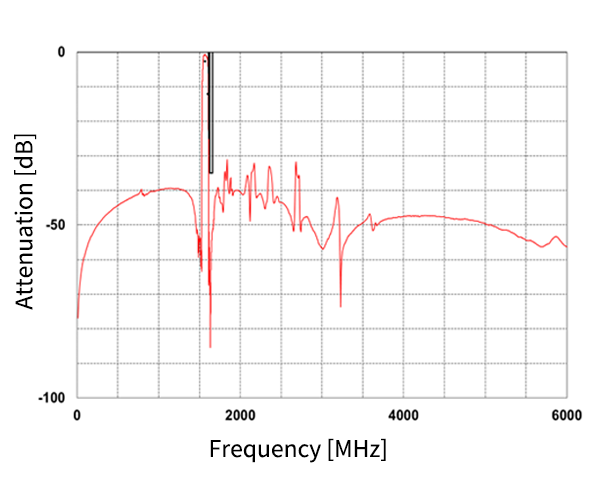

Curve Data

Electrical Characteristics

Product Features: SF11-1582M5UUD1

This is a special product designed to further improve attenuation characteristics in the 1.6GHz frequency band, which is used for satellite phones and low-speed data communications. While maintaining its low-loss performance, it delivers more stable signal quality for satellite communication equipment and wireless terminals used in specialized applications.

Features

Low insertion loss characteristics

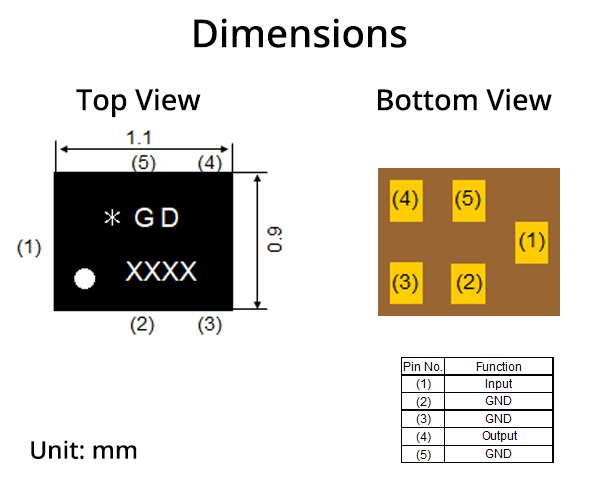

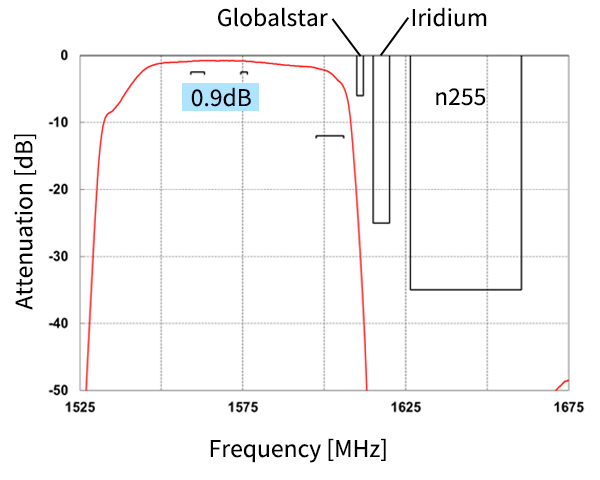

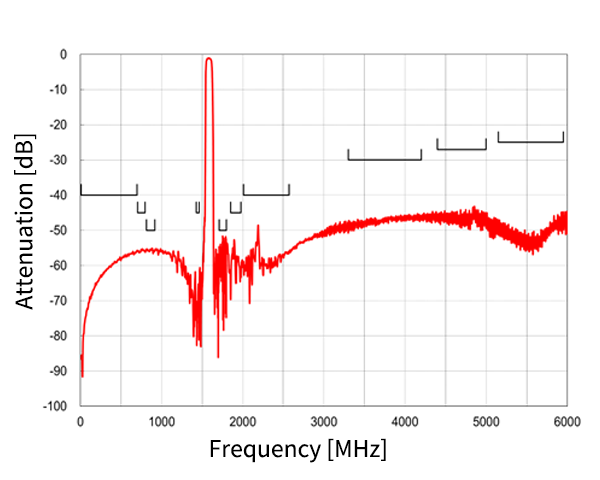

High attenuation characteristics for NTN frequencies compatible with Globalstar, Iridium, Inmarsat, and n255 communications
Compact size of 1.1 x 0.9mm
