Introducing Wire Catch Connectors and Pressure Welding Connectors
We are pleased to introduce connectors developed using KYOCERA AVX's proprietary technology that do not require a crimping process or manual soldering.
Overview
KYOCERA AVX has developed a connector that does not require a crimping process or manual soldering using its proprietary technology. This connector is suitable for various markets, including industrial equipment, consumer equipment, and automotive equipment.
These include the poke-home (wire catch) connector and the IDC (pressure welding) connector, which facilitate the connection of wires and circuit boards through a streamlined one-part design.
Left: Poke-Home (wire catch) connector
Features
- Wires and circuit boards can be connected without manual soldering
- Simple one-part configuration
Left: IDC (pressure welding) connector
Applications
Consumer appliances (white goods, LED lighting equipment, etc.)
Industrial equipment (surveillance cameras, sensors, handy terminals, smart meters, etc.)
In-vehicle equipment (shark fin antennas, cabin lamps, etc.)

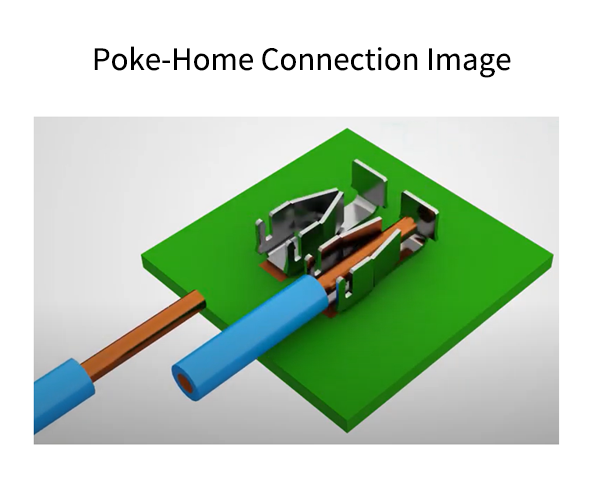

Poke-Home (Wire Catch) Connector
- Insert stripped conductors (easy routing)
- No crimping or soldering
- Reliable wire catch for high contact reliability
- No jig required for installation
Poke-Home (Wire Catch) Connector Assembly Movie
Part Number：70-9296-133
Part Number：70-9296-00x
Part Number：70-9296-017

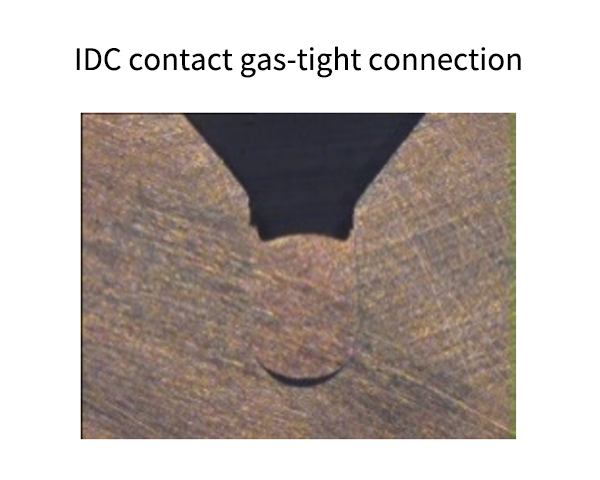

IDC (Pressure Welding Connector)
- Oxygen-free bonding prevents corrosion and achieves long-term contact reliability
- No crimping process and no manual soldering
- No need to strip wires
Pressure Welding Connector Assembly Movie
Left: Part Number 70-9176 Right: Part Number 79176-400/500
Left: Part Number 70-917x Hand Press Right: Part Number 79177-600
Left: Part Number 70-917x Hand Tool Right: Part Number 9176-700
Related Links
Wire Catch Connector and Pressure Welding Connector Top Page
KYOCERA AVX Components Product List
The Important Information/Disclaimer is incorporated in the catalog and/or this page by reference and should be reviewed in full before placing any order or inquiry.
