6288 Series 0.5mm, 1.0mm Pitch FPC/FFC Connector

The 6288 series 0.5mm, 1.0mm pitch, ZIF, right angle, lower contact type FPC/FFC connector was originally developed for automotive GPS/AV equipment. It is a customer favorite with a long history due to its many features such as heat resistance up to 125°C, vibration resistance, and multiple position options.

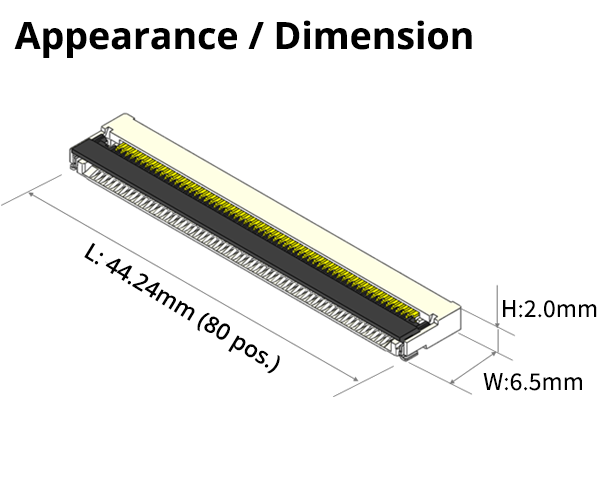

Product Specifications

Pitch	0.5mm / 1.0mm
Connection Method	Right angle
Available Positions	8 to 80
Lock Type	Front flip
Applicable FPC/FFC Thickness	0.3mm
Contact Location	Bottom Contact
Operating Temperature Range	-40°C to +105°C (+125°C)
Features	Excellent FPC/FFC Insertion
	High Cable Retention
	Wide Range of Product Variations

Feature 1: Excellent FPC/FFC Insertion

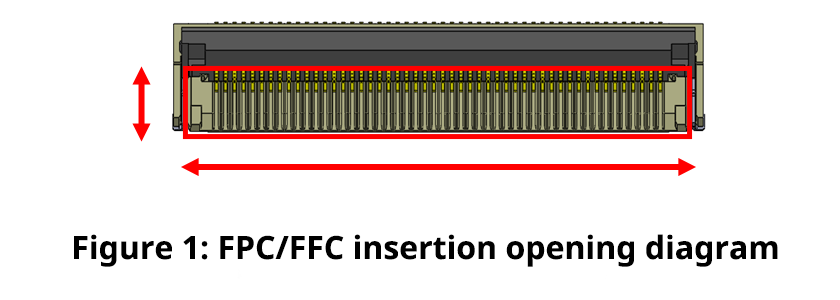

Wide slot opening allows easy cable insertion, thereby reducing defects caused by cable insertion error.
Figure 1: Cable insertion diagram

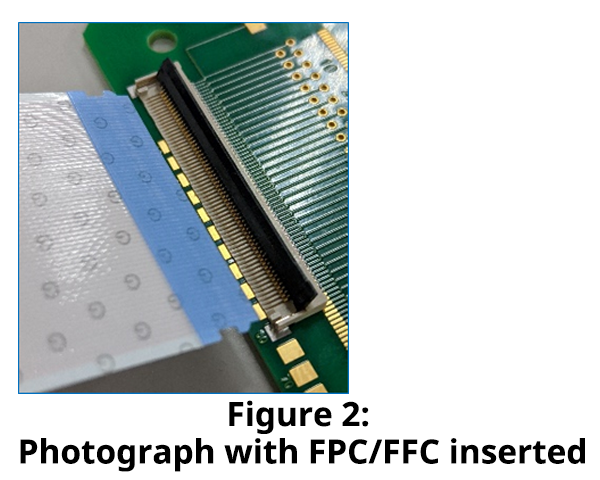

Feature 2: High Cable Retention

The 6288 series was engineered to achieve high retention and high contact force, and this tabbed FFC/FPC connector design provides superior cable retention. As it is designed with reliability in mind, this product is ideal for demanding automotive, medical, and industrial equipment applications.

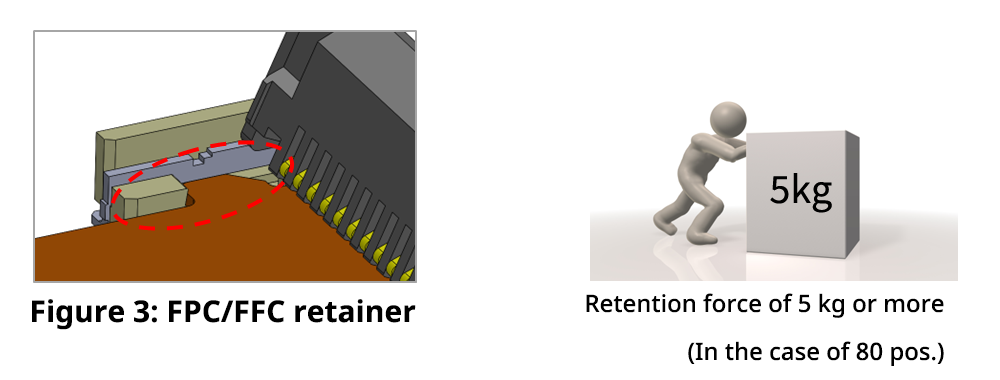

Retention force

Feature 3: Wide Range of Product Variations

We offer a variety of products to meet the diverse needs of our customers.
(Click on the product number to view details.)

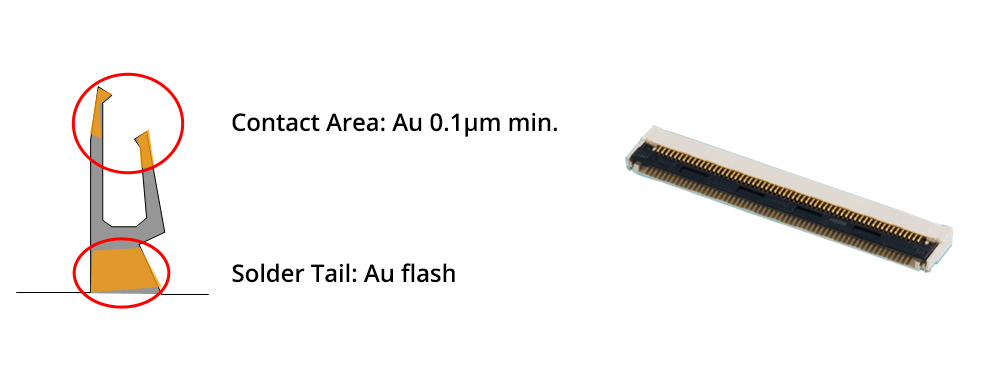

(1)04 6288 0XX 000 846+ Standard Type Product Search

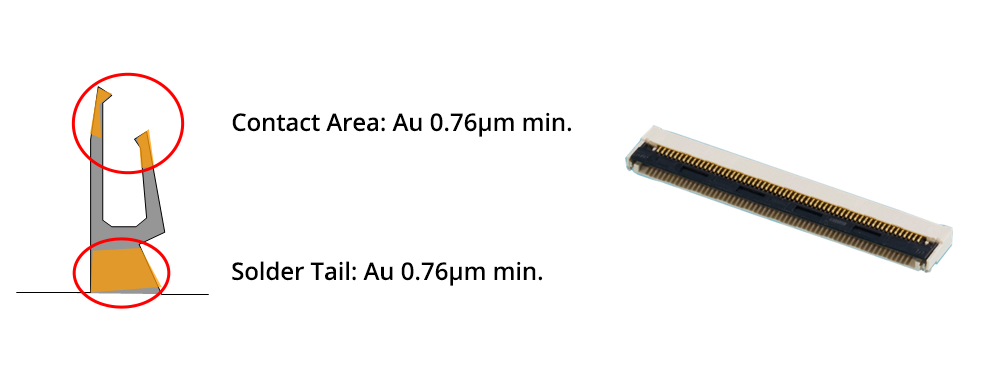

(2)04 6288 0XX 000 860+ Thick Plating Type (0.76μm Min.) Product Search

(3)04 6288 0XX 600 846+T High Heat Resistant Type Product Search

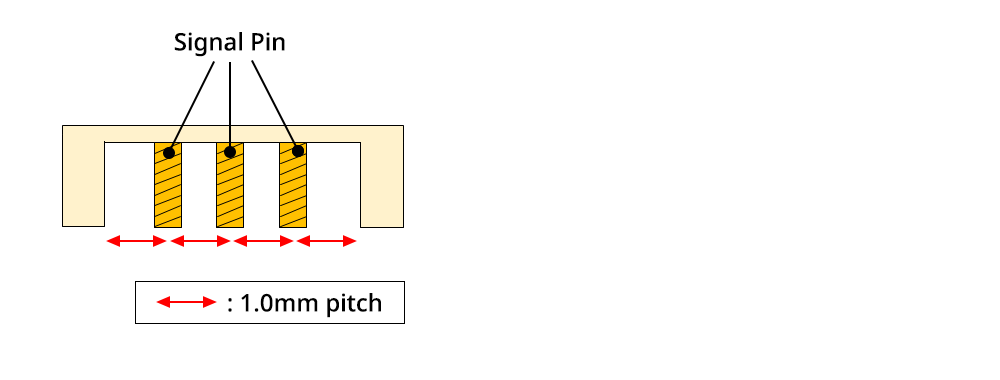

(4)04 6288 0XX 800 846+ 1.0mm Pitch Type Product Search

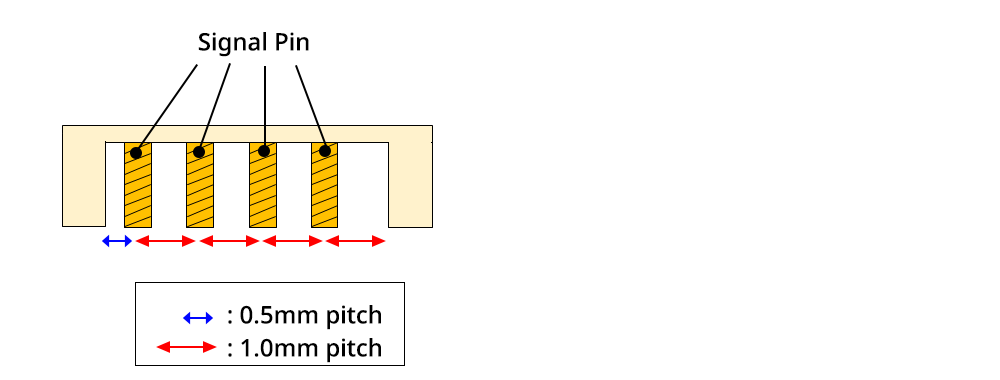

(5)04 6288 0XX 900 846+ 1.0mm Pitch Type (Offset) Product Search

Applications

Automobiles, industrial equipment, etc. applications

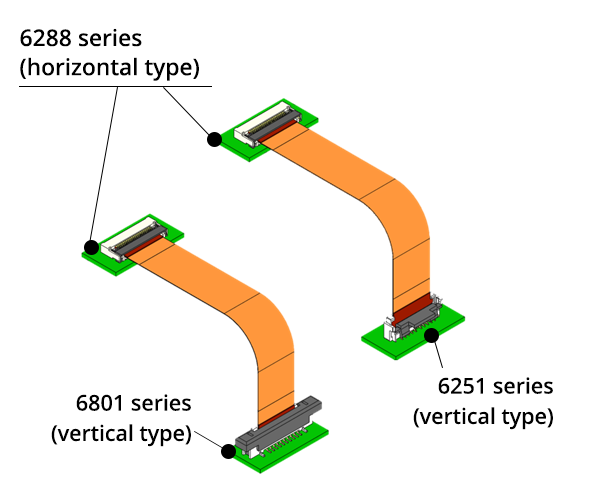

The 6288 series has identical cable requirements as the 6251/6801 series vertical type connectors. This allows the use of these connectors in combination as shown in the figure above, facilitating flexible mechanical design.

Developer's Comments

The 6288 series is a highly reliable 0.5mm/1.0mm pitch FPC/FFC connector that meets consumer, industrial, and automotive market requirements. This is one of our first secure locking products that ensures contact reliability when used in combination with tabbed FPC/FFC cable.

This connector series offers 8 to 80 positions, contributing to greater freedom in device design. Generally, when the number of pins increases, the insertion force and the force required to lock the actuator increase, but by adopting an actuator shape that matches the number of pins, it is possible to maintain a stable locking state with small pins and achieve a low operating force with large pins.

The contact spring design, which is the basis for contact reliability, effectively clamps the FPC/FFC cable using a sprung stabilizer, resulting in higher contact force and creep resistance within the low-profile 2.0mm product height.

We hope this site has helped you better understand the merits of the 6288 series.
Based on Kyocera’s many years of experience and trust, we will continue to deliver high-quality products.
