[New Product] UWB LDS Antenna
KYOCERA AVX is a trusted supplier of antennas for Wi-Fi, Bluetooth®, LTETM, GNSS, UWB, and other wireless communications. We are pleased to introduce a new tulip-shaped LDS (Laser Direct Structuring) antenna for UWB (Ultra Wide Band) communication.

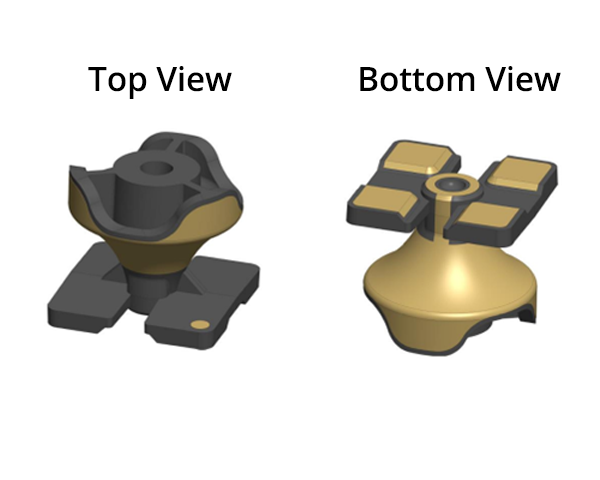

This antenna is an onboard antenna optimized for 6.0 to 8.5 GHz applications. Utilizing LDS technology and a tulip-shaped design, it delivers consistent performance across the entire 360° around the antenna.
Bluetooth® is a registered trademark of Bluetooth SIG, Inc.
LTE is a trademark of ETSI.
Features and Applications
Features
- High efficiency
- Supports 6.0GHz to 8.5GHz frequency range
- Laser Direct Structuring (LDS) technology and tulip-shaped geometry achieve consistent performance is achieved across all 360° directions
- Reflow implementation is possible
- Evaluation boards are available
Applications
- Smart keys (in-vehicle and consumer products)
- Onboard ADAS equipment
- Wearable devices
Product Specifications (Using a 40mmx40mm PCB)
Part Number | 9002305L0-L01 |
|---|---|
Datasheet | |
Peak Gain | 4.3dBi |
Average Efficiency | 61% |
VSWR | <5.0:1 max. |
Maximum Group Delay | 2ns |
Size | 6.40x6.40x5.52mm |

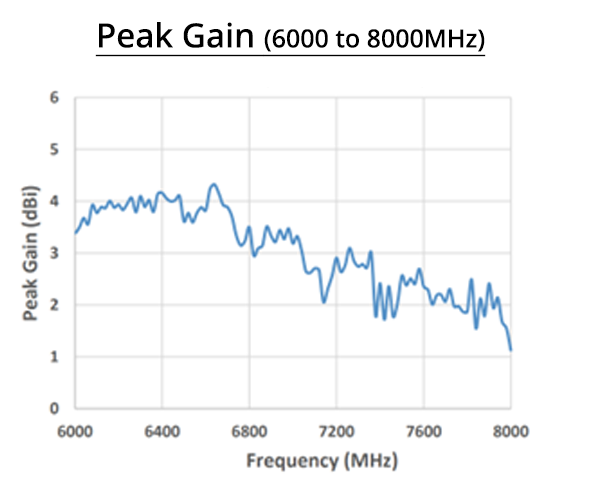

Antenna Performance

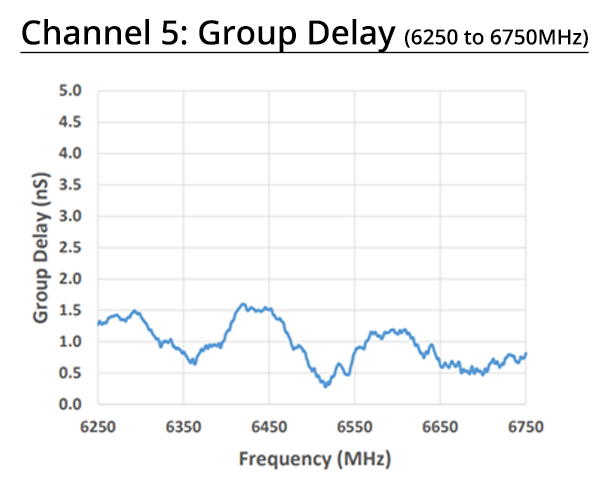

Group Delay Characteristic
Additionally, we offer a lineup of UWB antennas in various shapes and interfaces, including ceramic chips, PCB/FPC + cable, and PCB + connectors.
