SpiCat-SpiSCap—SuperCapacitors Simulation Tool

KYOCERA AVX has launched a new line of high-performance cylindrical SuperCapacitors designed for rapid charge and discharge. To help you find the perfect fit, we have introduced SpiCat-SpiSCap—an intuitive simulation tool that simplifies selecting the right KYOCERA AVX capacitor based on your specific circuit requirements

What is SpiCat?

KYOCERA AVX online simulation software, SpiCat.
KYOCERA AVX’s SpiCat online simulation suite provides instant, browser-based access to critical component data with no download required.
From capacitors and varistors to thermistors, you can accurately model frequency and temperature characteristics, analyze voltage coefficients, and instantly download 3D STEP models and technical datasheets to streamline your design process.

We have released SpiCat - SpiSCap, a new tool for selecting electric double layer capacitors. We invite you to explore its features and see how it can optimize your next design.

What SpiCat - SpiSCap Can Do

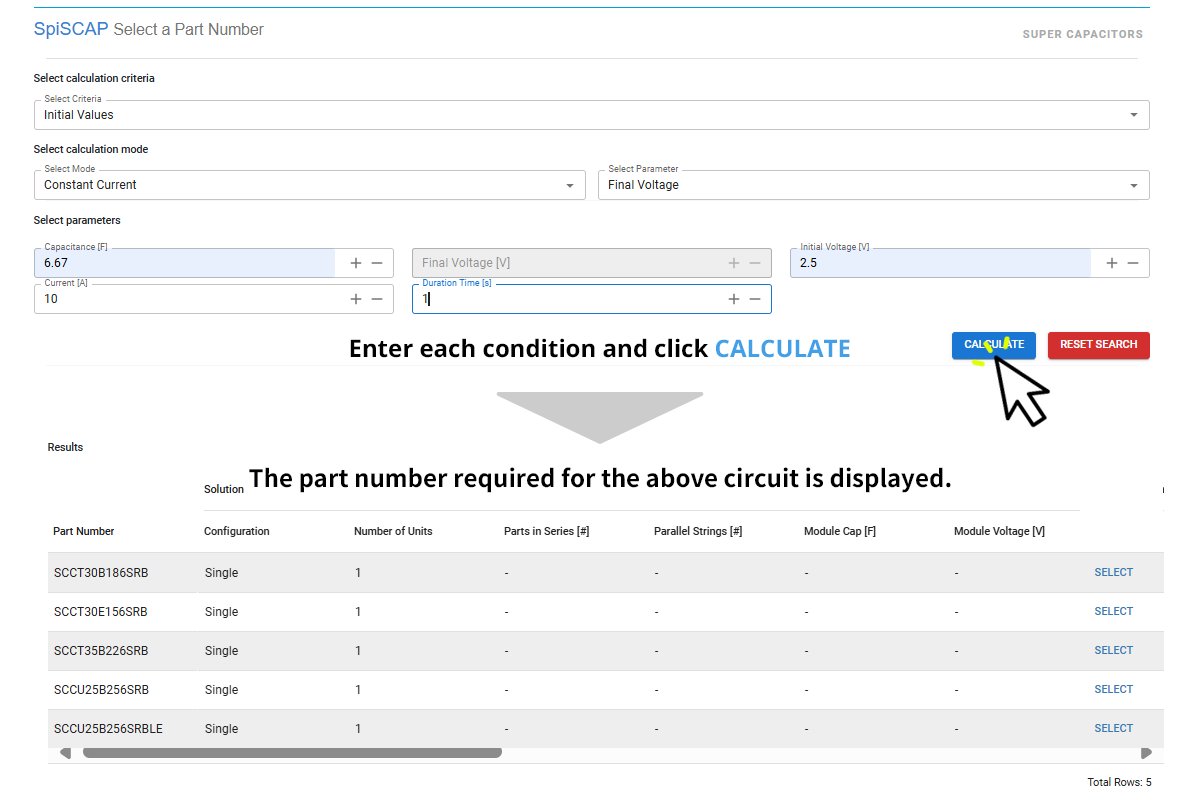

Select the required product based on circuit specifications

Easily select the correct part number by entering the requirements below.

Capacitance (initial value or value after life degradation)
Initial and termination voltages of the circuit
Discharge mode (low-power discharge, constant-current discharge, and constant-resistance discharge)
Discharge duration

SpiCat - Getting Started with SpiSCap

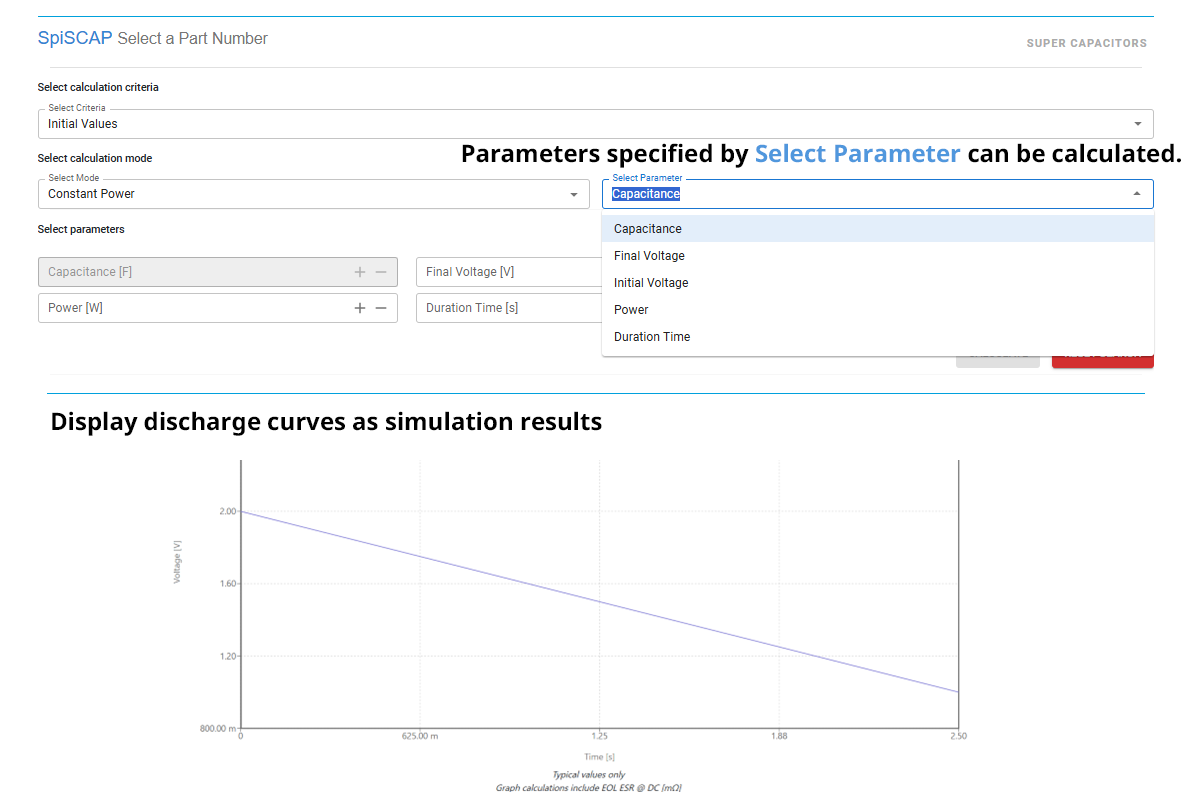

Calculate values such as charge duration and termination voltage by simulation

Select a part number and values to simulate discharge duration and terminal voltage.
View detailed performance results via interactive discharge curves.

SpiCat - Getting Started with SpiSCap

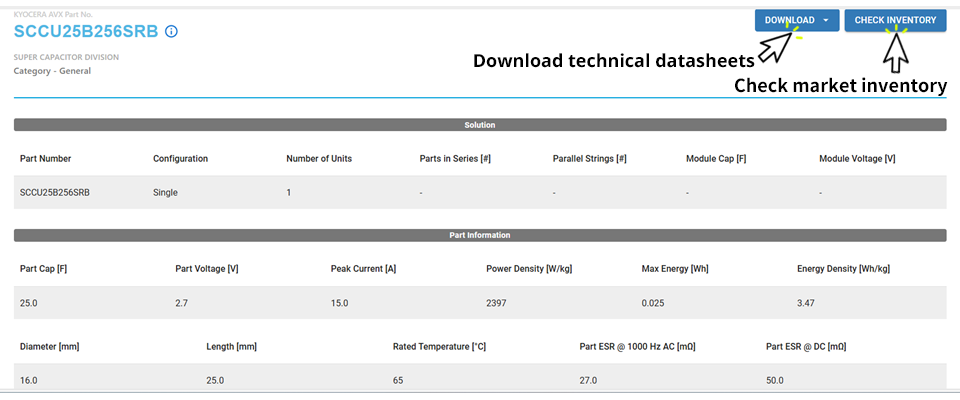

Based on the simulation results, you can check the datasheets and market inventory for the target part numbers.

You can access more detailed datasheets for the product models calculated in the simulation, as well as check inventory and make purchases—all in one place.

SpiCat - Getting Started with SpiSCap
