Low-Profile GPS Ceramic Patch Antennas

KYOCERA AVX offers antennas for Wi-Fi, Bluetooth®, LTE^TM, GNSS, UWB, and other wireless communications.
We are pleased to introduce our newly released low-profile GPS ceramic patch antenna, specifically engineered for high-performance satellite communication. This low-profile antenna is 2.0 mm high and can achieve high performance on the L1 GPS band, making it suitable for devices requiring GPS such as M2M.

Bluetooth® is a registered trademark of Bluetooth SIG, Inc.
LTE is a trademark of ETSI.

Features and Applications

Features

High efficiency for the L1 band (1.575 GHz) with circular polarization.
Low-profile: 2.0 mm
Mountable by double-sided tape and soldering through-hole pins

Applications

M2M devices (automotive, industrial, consumer products)
GPS tracker
Drone
Agricultural equipment, etc.

Specifications (Using a 50 mm x 50 mm Ground Plane)

Part Number	9003160
Datasheet	(PDF/792KB)

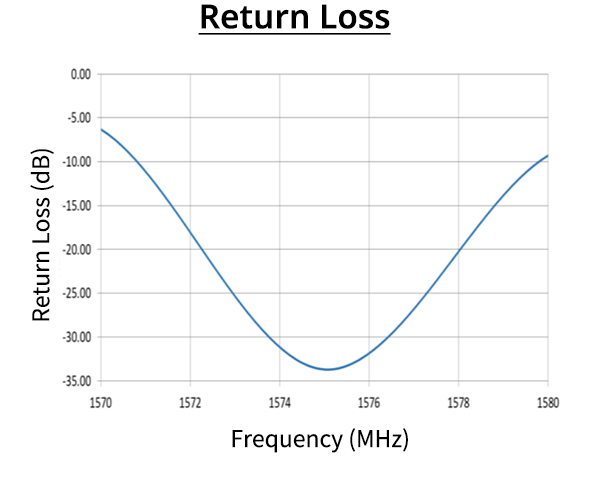

Return Loss	< -6.0 dB
Gain	1.0 dBic (0°XZ plane)

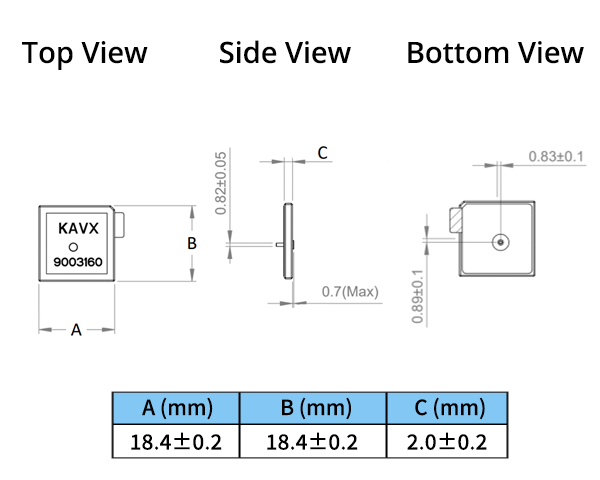

Size	18.4 x 18.4 x 2.0 mm
Distributor Inventory	Distributor Inventory Search

We also offer the 1005620, a low-profile stack GPS ceramic patch antenna (height 4.16 mm) supporting both L1 and L5 waves in a single package.

Antenna Performance (Using 50 mm x 50 mm PCB)

1005620 Specifications for L1 and L5 Waves (Using a 70 mm x 70 mm Ground Plane)

Part Number	1005620
Datasheet	(PDF/792KB)
Frequency	1584 MHz (L1), 1176 MHz (L5)
Return Loss	< -10 dB (L1, L5)
Gain	1.0 dBic (0°XZ plane)
Size	25.0 x 25.0 x 4.16 mm
Distributor Inventory	Distributor Inventory Search
