Compression Connector Easily Connected with One Component

KYOCERA AVX provides connectors that eliminate crimping processes and manual soldering, utilizing proprietary technology for use across diverse markets including industrial equipment, consumer electronics, and automotive applications.
This time, we are introducing a compression connector that can connect a circuit board using a single component by using spring-shaped terminals. This connector is also suitable for battery connection.　

Features and Applications

Features

Simple one-part configuration
Can be easily removed without soldering or crimping
Line-up for vertical and parallel connections
Contributing to automation of assembly processes
High reliability achieved by using beryllium copper as the base material and gold for plating
Capable of handling currents up to 5A
Number of insertions and removals: 5,000 to 15,000 times

Applications

Industrial equipment
In-vehicle equipment
Consumer equipment
Various portable devices (battery connection)

Product Lineup (Horizontal)

Series	9155-400	9155-000	9155-100	9155-200	9155-250	9155-020
Pitch	4.0mm	2.5mm	2.5mm	2.5mm	2.5mm	1.7mm
Number of Positions	2/3/4/5/6	3/4/5	2/3	2/3/4/5	2/3/4/5	2/3/4/5
Height Above Board	4.1 to 7.3mm	3.2 to 5.0mm	1.35 to 1.95mm	2.5 to 3.3mm	4.1 to 4.9m	2.5 to 3.1m
Rated Current	5A/Contact	3A/Contact	3A/Contact	3A/Contact	3A/Contact	3A/Contact(2,3poles) 2A/Contact(4,5poles)
Number of Insertions and Removals	5,000 times	5,000 times	5,000 times	5,000 times	5,000 times	15,000 times
Catalog	9155-400	9155-000	9155-100	9155-200	9155-250	9155-020

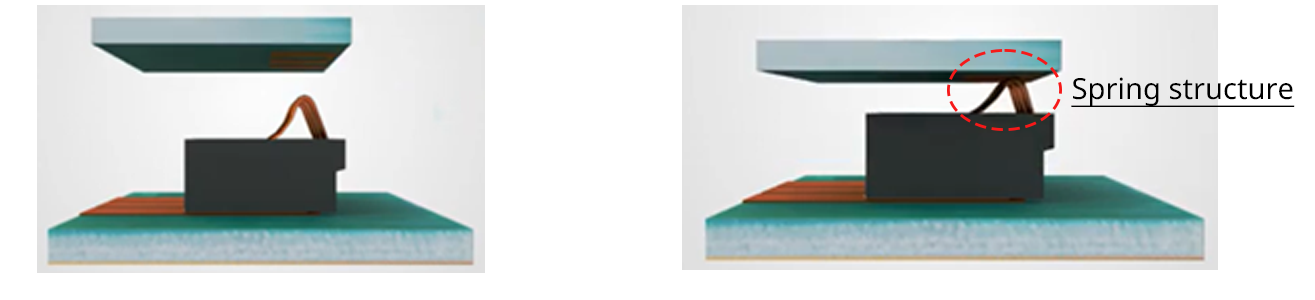

The spring structure, combined with the use of beryllium copper for the base material and gold plating, achieves high reliability.

Product Lineup (Vertical)

Series	9155-300	9155-500	9155-700	9155-800
Pitch	3.0mm	2.5mm	2.0mm	2.0mm
Number of Positions	2/3/4/5/6	2/3/4/5	2/3/4/5/6	2/3/4/5/6/7/8
Height Above Board	4.64mm	2.10mm	2.10mm	1.40mm
Compression Range	0 to 1.0mm	0.5 to 1.5mm	0.5 to 1.5mm	0.05 to 0.55mm
Rated Current	3A/Contact	3A/Contact	2A/Contact(2 to 4poles) 1.5A/Contact(5,6poles)	2A/Contact(2 to 4poles) 1.5A/Contact(5,6poles)
Number of Insertions and Removals	5,000 times	5,000 times	5,000 times	5,000 times
Catalog	9155-300	9155-500	9155-700	9155-800
