Card Edge Connector for Easy Connection Between Boards

This page introduces a card edge connector that enables the seamless connection of circuit boards using KYOCERA AVX's proprietary technology.

Features and Applications

KYOCERA AVX utilizes proprietary technology to provide connectors that eliminate the need for crimping or manual soldering, making them suitable for a range of markets, including industrial equipment, consumer electronics, and automotive equipment. Among them is the card edge connector that can connect boards in a simple one-part configuration.

Features

Simple one-part configuration
Lineup for vertical and parallel connections
Lineup for double-sided and single-sided boards
Rated voltage : 300V
Rated current : 2A to 3A
Insertion/removal cycles: 5 or 10 times
UL Standard 1977 compliant

Applications

Lighting equipment
Industrial equipment
In-vehicle equipment

Product Lineup

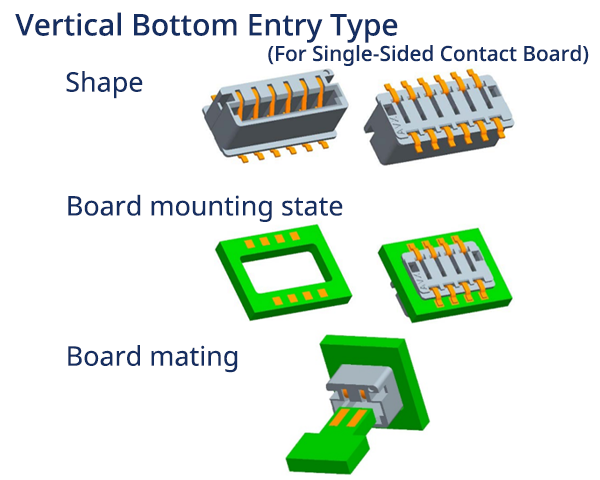

Vertical Bottom Entry Type (For Single-Sided Contact Boards)

Series	9159-500
Catalog	(PDF/1MB)
Substrate Thickness	0.80mm / 1.60mm
Number of Positions	2 / 3 / 4 / 5 / 6
Rated Current	2A/Contact
Rated Voltage	300V
Operating Temperature Range	-40℃ to +120℃
Number of Insertions and Removals	10 times
UL Standard	1977 compliant

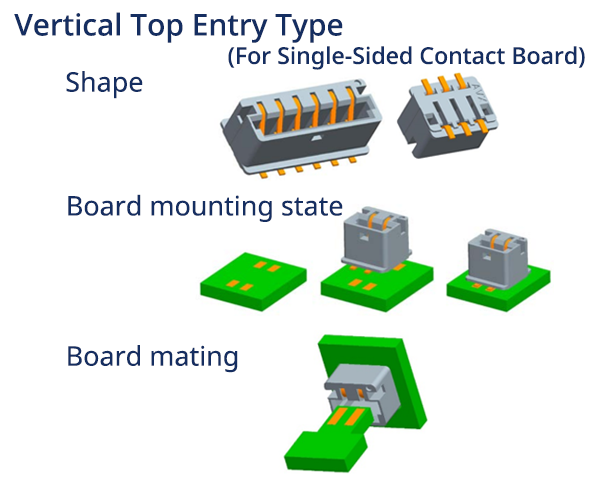

Vertical Top Entry Type (For Single-Sided Contact Boards)

Series	9159-550
Catalog	(PDF/825KB)
Substrate Thickness	0.80mm / 1.60mm
Number of Positions	2 / 3 / 4 / 5 / 6
Rated Current	2A/Contact
Rated Voltage	300V
Operating Temperature Range	-40℃ to +120℃
Number of Insertions and Removals	10 times
UL Standard	1977 compliant

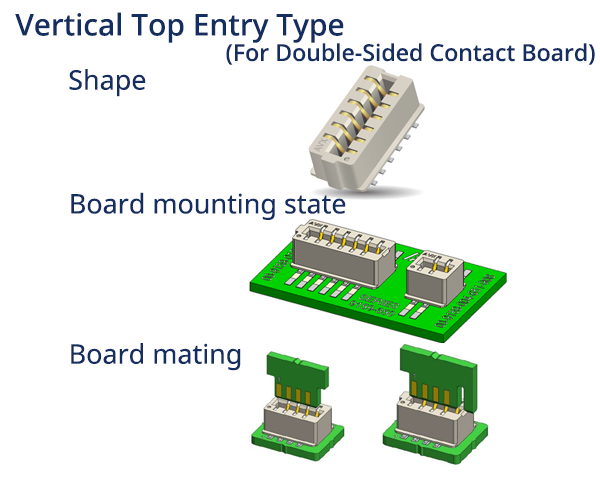

Vertical Top Entry Type (For Double-Sided Contact Boards)

Series	9159-650
Catalog	(PDF/723KB)
Substrate Thickness	1.60mm
Number of Positions	4 / 6 / 8 / 10 / 12
Rated Current	2.5A/Contact
Rated Voltage	300V
Operating Temperature Range	-40℃ to +125℃
Number of Insertions and Removals	10 times
UL Standard	1977 compliant

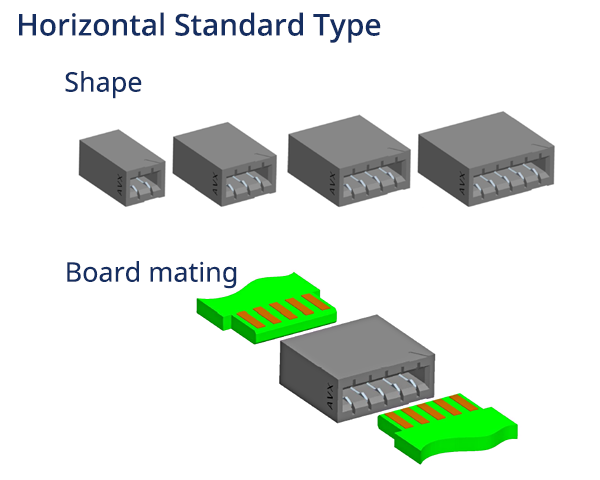

Horizontal Standard Type

Series	9159-000
Catalog	(PDF/544KB)
Substrate Thickness	1.60mm
Number of Positions	2 / 3 / 4 / 5
Rated Current	3A/Contact
Rated Voltage	300V
Operating Temperature Range	-40℃ to +125℃
Number of Insertions and Removals	5 times
UL Standard	1977 compliant

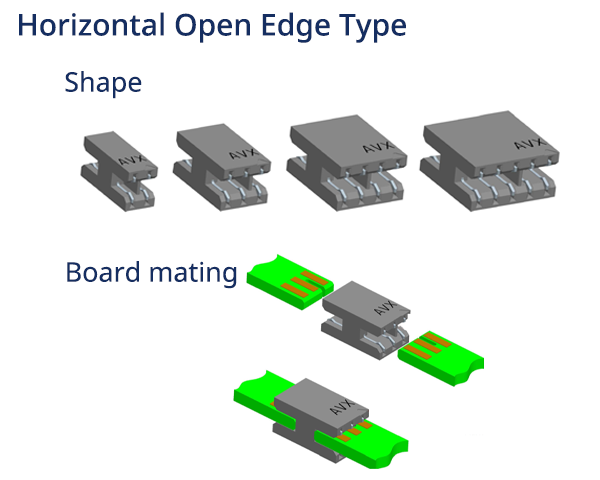

Horizontal Open Edge Type

Series	9159-060
Catalog	(PDF/336KB)
Substrate Thickness	1.60mm
Number of Positions	4 / 6 / 8 / 10
Rated Current	Max. 3A (4 / 6pos.) 2.5A (8 / 10pos.)
Rated Voltage	300V
Operating Temperature Range	-40℃ to +125℃
Number of Insertions and Removals	5 times
UL Standard	1977 compliant
