FloXY®HS 0.5mm Pitch Board to Board Connectors with Space-Saving Design

Evolving demands of SDVs and ADAS/AD in automotive applications require connectors with higher performance. Kyocera's "5631 Series" floating Board to Board connectors are a compact solution for supporting high-speed data transmission standards and in-vehicle applications. This is a new product in the FloXY®HS brand series.

^{＊FloXY is a registered trademark of Kyocera Corporation.}

Development Background

With the widespread adoption of EVs and the rapid evolution towards SDVs, ADAS/AD innovation is essential for paving the way to safer transportation. The core mobility computer and IVI system in a vehicle are highly functional systems based on AI and OTA updates. Connectors must meet the demanding requirements of processing massive amounts of real-time data from high-resolution LiDAR and cameras. Key specifications include high data capacity, high-speed transmission, and exceptionally high reliability.

To meet this market need, Kyocera has developed the "5631 series" 0.5mm pitch floating board to board connectors that support high-speed data transmission.

KeywordsThe Official Mascot of Kyocera’s Electronic Components: Eletan

Click here to learn more about Eletan

What is an SDV?
It stands for Software Defined Vehicle. With an SDV, the performance and functionality of the vehicle are managed through software and cloud connectivity and can be updated with enhanced safety features and additional driving modes without physical modifications.

What is AD?
It stands for Autonomous Driving. The system operates automatically without human intervention. On the other hand, "Advanced Driver-Assistance Systems" (ADAS) support human driving and are characterized by a system to improve driving safety and reduce the risk of accidents.

What is an IVI?
It stands for In-Vehicle Infotainment System, a type of next-generation in-vehicle information and communications system. This system provides information and entertainment to drivers and passengers on the in-vehicle network. In addition to the car navigation system and car audio system, it also supports driving in a comfortable environment, such as watching videos, connecting to smartphones, and connecting to the internet.

What is OTA?
It stands for Over the Air. It is a technology that uses wireless communication to send and receive data. OTA allows software and firmware updates to be performed wirelessly. In connected cars, it is used to update navigation data and improve and upgrade driver assistance systems.

Product Specifications

Product Name	5631 Series Product Search　Catalog (5MB)	Operating Temperature Range	-40℃ to +125℃
Pitch	0.5mm	Rated Current	DC 0.5A/Contact* DC 3.0A/Power pin *The current value may be limited due to temperature rise.
No. of Positions	20 to 180 pos.	Rated Voltage	DC 50V/Contact

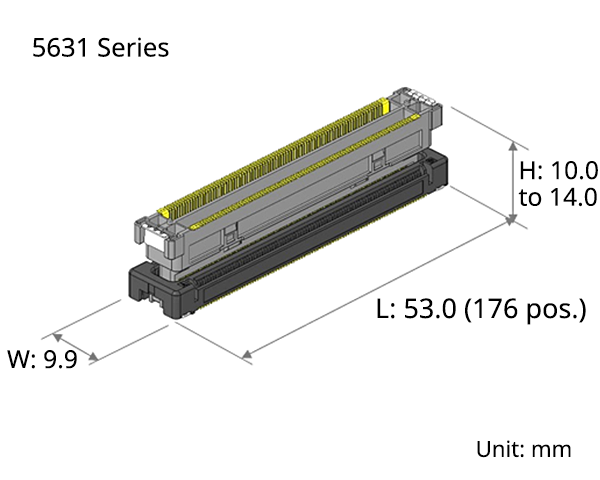

Size	Width: 9.9mm Stacking Height: 10.0 to 14.0mm	Floating Amount	XY ±0.5mm
Features	Low Profile, Space-Saving Floating Capability that Compensates for Misalignment and Achieves High Reliability High-Speed Transmission Capability

Features

1. Low Profile, Space-Saving

This connector features a space-saving design with a 10 to 14mm stacking height and shallow 9.9mm width, utilizing a precise 0.5mm pitch floating mechanism for reliable, high-density applications. Together with Kyocera's 5652 Series, we offer height variations from 10 to 25 mm. This makes it possible to respond to our customers' design needs.

2. Floating Capability that Compensates for Misalignment and Achieves High Reliability

The floating capability is ±0.5 mm in both X and Y directions. The connector design compensates for variations in PCB mating and minimizes solder joint stress to enhance long-term performance.

3. High-Speed Transmission Capability

Even with the floating capability, the design targets a differential characteristic impedance of 85 to 100 ohms, allowing compatibility with various high-speed transmission standards. It supports high-speed transmission standards such as PCI Express Gen.4 (16 GT/s) and USB 3.2 Gen.2.

Applicable Standards

PCIe Gen.1 2.5GT/s to Gen.4 16GT/s
USB3.2 Gen.1/Gen.2
MIPI D/C-PHY
SATA3.0

etc.

KeywordsThe Official Mascot of Kyocera’s Electronic Components: Eletan

Click here to learn more about Eletan

What is PCI Express (PCIe)?
A high-speed serial bus standard for connecting an expansion card (Graphics board, SSD, etc.) inside a PC to the motherboard.

What is USB?
A general-purpose interface for connecting PCs and peripheral devices (Mouse, keyboard, storage, etc.).
