Introduction to Automotive Grade SuperCapacitors

Introducing automotive grade SuperCapacitors that comply with AEC-Q200.

Overview

KYOCERA AVX has developed and mass-produced cylindrical type SuperCapacitors capable of rapid charging and discharging.

This product lineup includes an automotive-grade SuperCapacitor that complies with AEC-Q200 standards. When used in combination with a battery or alone, it can extend the backup time of automotive devices, extend the battery life, and provide instantaneous high power.

Features

Compliant with AEC-Q200.
Adopting acetonitrile as the electrolyte has yielded two key benefits: a long lifetime and low ESR in the low-temperature range.
Lineup of 2.7 V and 3.0 V products
UL810A Compliant

Achieves Long Life and Low ESR in Low-Temperature Ranges

KYOCERA AVX's SuperCapacitors use acetonitrile as the electrolyte to achieve longer life and lower ESR at lower temperatures compared to SuperCapacitors using propylene carbonate.

Long life.
Easily predict lifetime on datasheets.
Low ESR in the low-temperature ranges.
Suitable for outdoor applications such as in vehicles and infrastructure-related equipment.

Achieves Long Life and Low ESR in Low-Temperature Ranges

Data is based on research by Kyocera.

Product Numbering System and Product Lineup

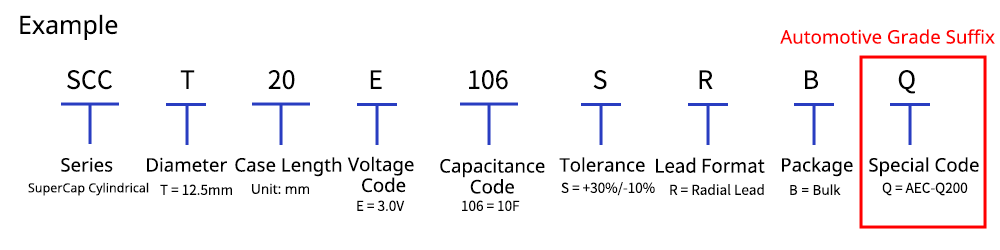

Part Number System

part number system

Product Lineup

Part Number	Diameter (mm)	Length (mm)	Rated Capacitance (F)	Capacitance Tolerance	Rated Voltage (V)	Rated Temperature (℃)	DCL Max. @72 Hrs. (μA)	ESR Max. @1000 Hz (mΩ)	ESR Max. @DC (mΩ)	Peak Current (A)	Power Density (W/kg)	Max Energy (Wh)	Energy Density (Wh/kg)	Datasheet
Radial Lead
SCCT20E106SRBQ	12.5	20	10	+30%/-10%	3.0/2.5*	65/85*	30	50	75	8.57	4235	0.0125	3.68	993KB
SCCU25B256SRBLEQ	16	25	25	+30%/-10%	2.7/2.3*	65/85*	60	15	25	20.77	4793	0.0253	3.47	979KB
SCCU30E356MRBLEQ	16	30	35	±20%	3.0/2.5*	65/85*	85	13	25	21.88	5023	0.0438	5.09	979KB
SCCV40E506SRBQ	18	40	50	+30%/-10%	3.0/2.5*	65/85*	75	18	20	37.50	4154	0.0625	4.81	996KB
SCCV60B107SRBQ	18	60	100	+30%/-10%	2.7*	65/85*	260	15	18	48.21	2430	0.1013	5.06	995KB
SCCV60E107SRBQ	18	60	100	+30%/-10%	3.0*	65/85*	260	15	18	53.57	2904	0.1250	6.05	977KB

*With appropriate voltage derating, the operating temperature can be extended to 85°C.

Applications

Door latch, eCall, Drive recorder, V2H, etc.

KeywordsThe Official Mascot of Kyocera’s Electronic Components Division: Eletan

Click here to learn more about Eletan

What is eCall?
eCall is an abbreviation for "emergency call." This innovative system is designed to automatically notify emergency centers, fire departments, and police in the event of an emergency, such as a vehicle accident.

What is V2H?
V2H stands for "Vehicle to Home," and is a system that can supply electricity to homes from electric vehicles (EVs) and plug-in hybrid vehicles (PHEV).
