2-Piece Crimp Connector
KYOCERA AVX has developed connectors that do not require manual soldering using its proprietary technology, and can be used in a variety of markets, including industrial equipment, consumer equipment, and automotive equipment.
Our newly released two-piece crimp connector features an integrated latching mechanism to provide high-strength, secure connection between wires and circuit boards.
Features
- Utilizing crimping technology and a latch structure enables high-strength connections (holding force: 40N)
- Compact size of 2.4mm width and 1.2mm height
- Design to prevent accidental insertion
- Easy removal of wire side crimping plug contacts by using a special jig
- Rated current: 8A
- Operating Temperature: -40℃ to 125℃
- Applicable Wire Size: AWG#22 to 28
- Compliant with UL
- Datasheet (PDF/340KB)

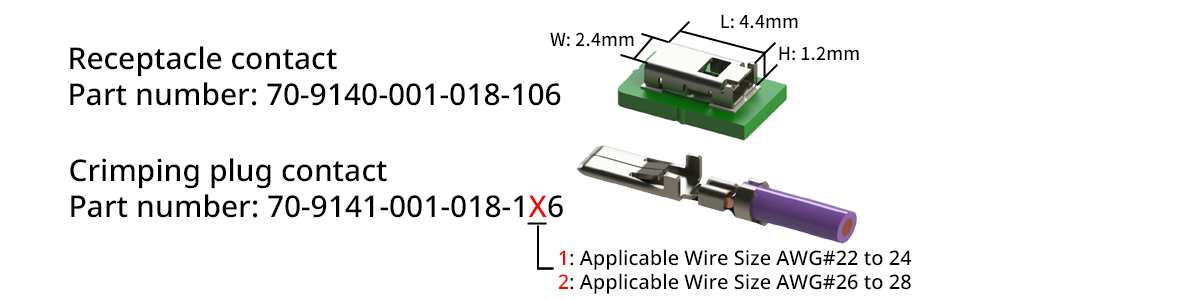

Small Size

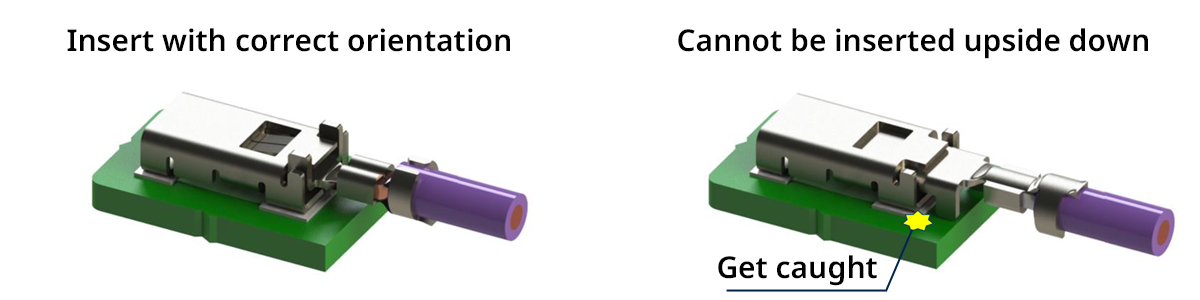

Design to Prevent Accidental Insertion
Easy Removal
Applications
Consumer appliances (outdoor lighting, white goods, etc.), industrial equipment (various sensors, motors, etc.)
