CX1612DB37400B0GFF** 2.Production

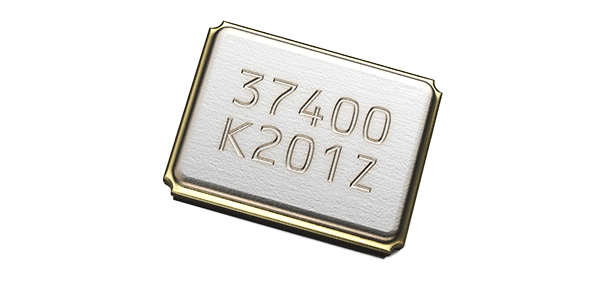

1612 Ultra-miniature Size and Low Profile Crystal Unit

Recommended applications: Smartphones, tablet PCs, wearable devices, communication module, laptops, flat TV, audio devices and game machine etc.

Send by Email
Distributor Inventory

Features

・Crystal unit for mobile communication Systems.
・Reflow compatible
・Using ceramic package resulting in high reliability

Application

  • Smartphone, Tablet PC
  • Wearable Device
  • Communications Module
  • Consumer Equipment (Flat TV, PC, Game)
  • Robot

Design Tools

Crystal Units vs. IC Matching Search

Specifications

Type Crystal unit for consumer products
Dimensions (L×W) 1.6×1.2mm
Height (max.) 0.35
Frequency [MHz] 37.4MHz
Operating Temperature Range -20℃ to 70℃
Frequency Tolerance (x10 -6) ±15 @25℃
Temperature Characteristics (x10 -6) ±10
Load Capacitance 6pF
Applications Consumer Products
Wireless Communication
Industrial Equipment
Packaging Style Reel
Quantity per Package 3000/20000
Weight 2.90mg
Remarks
PSL: R4Y

Packaging Specifications

Packaging Style Reel
Quantity per Package 3000/20000
Weight 2.90mg
