CT2520DB 3.NRND

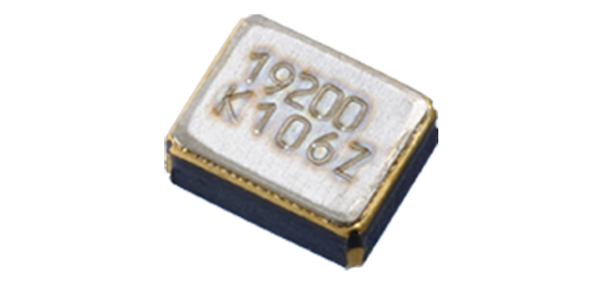

2520 Miniature Size Crystal Unit with Thermistor
Send by Email
Distributor Inventory

Features

・Reference frequency for telecommunication systems
・Reflow compatible
・ Using ceramic package resulting in high reliability

Design Tools

Crystal Units vs. IC Matching Search

Specifications

Type Crystal unit with Thermistor
Dimensions (L×W) 2.5×2.0mm
Height (max.) 1.00
Frequency [MHz] 19.2MHz
Operating Temperature Range -20℃ to 85℃
Frequency Tolerance (x10 -6) ±10 @25℃,±15 @25℃
Temperature Characteristics (x10 -6) ±12
Load Capacitance 6pF,7pF
AEC-Q AEC-Q200
Packaging Style Reel
Quantity per Package 12000

Packaging Specifications

Packaging Style Reel
Quantity per Package 12000

Engineering Documents

Catalog
ct2520db_2020_e.pdf (748.68KB)

FAQ

View All

For ISO/IATF status, please click here.
