Block Diagram: Server

block_mv_pc_server.png block_mv_sp_server.png

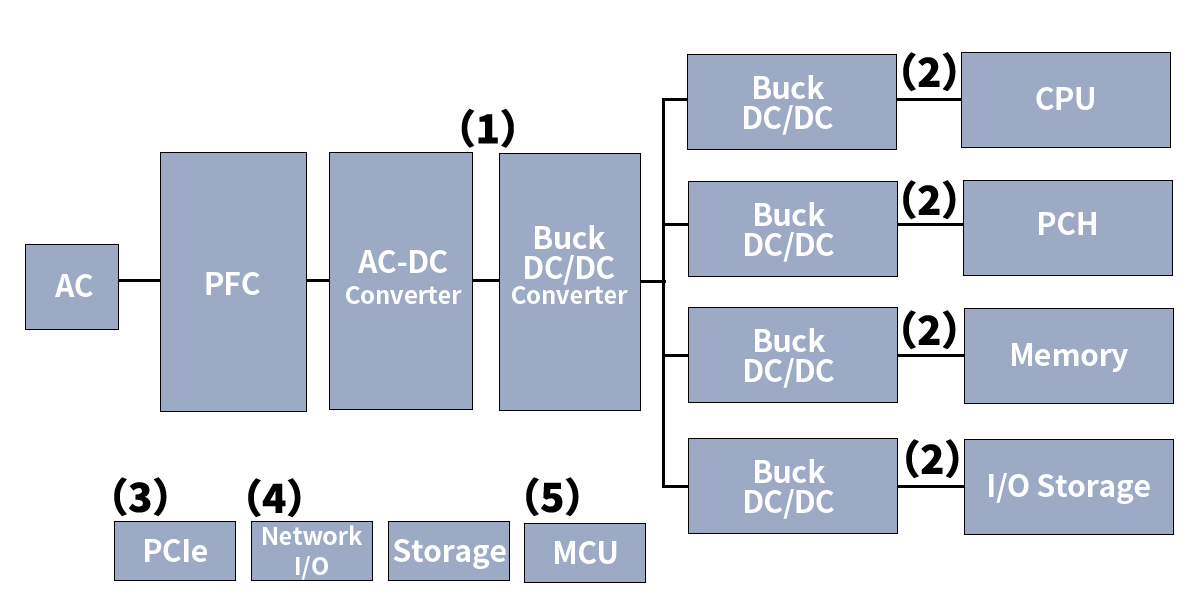

The Kyocera electronic components used in a server are shown in the block diagram.

LinkedinLinkedinLinkedin

Server

(1) PFC

Category

Series

Catalog

Discretes Fast Recovery Diodes(FRD)

FRD-600V Series

(2.3MB)



(2) Buck DC/DC Converter

Category

Series

Catalog

Multilayer Ceramic Chip Capacitors (MLCC)

KGM Series

(1.3MB)



(3) Buck DC/DC

Category

Series

Catalog

Polymer Capacitors

TCJ Series

(1MB)

Polymer Capacitors

TCN Series

(752KB)

Multilayer Ceramic Chip Capacitors (MLCC)

KGM Series

(1.3MB)



(4) PCIe

Category

Series-Frequency

Catalog

Clock Oscillators(SPXO)

KC2016F-100MHz
Please Contact Us for More Information

Please Contact Us for More Information

Clock Oscillators(SPXO)

KC2520F-100MHz
Please Contact Us for More Information

Please Contact Us for More Information



(5) Network I/O

Category

Series-Frequency

Catalog

Clock Oscillators(SPXO)

KC2016K-125MHz

(850KB)

Clock Oscillators(SPXO)

KC2520K-125MHz

(850KB)

Clock Oscillators(SPXO)

KC2016F-156.25MHz
Please Contact Us for More Information

Please Contact Us for More Information

Clock Oscillators(SPXO)

KC2520F-156.25MHz
Please Contact Us for More Information

Please Contact Us for More Information



(6) MCU

Category

Series-Frequency

Catalog

Clock Oscillators(SPXO)

KC2016Z-25MHz

(755KB)

Clock Oscillators(SPXO)

KC2016K-25MHz

(850KB)

Clock Oscillators(SPXO)

KC2520Z-25MHz

(755KB)

Clock Oscillators(SPXO)

KC2520K-25MHz

(850KB)

Clock Oscillators(SPXO)

KC2016K-100MHz

(850KB)

Clock Oscillators(SPXO)

KC2520K-100MHz

(850KB)



IC Reference Search for certified products (Crystal Devices) by manufacturer name.
